Kartusche versionierbar aus Ultem
Tasa de flujo
Ficha técnica
-
Installation
-
The product can be installed in any position, without compromising its operation and performance
-
Applications
-
Everywhere it is necessary a flow reduction or a control of the fluid direction
-
Physical specifications
-
Body
ULTEM
-
Other components
NBR, LSR, POM
-
Working specifications
-
Working pressure
0 ÷10 bar (0÷7 bar ONLY for PF10 cartridge)
-
Room temperature
Tu 90°C
-
Fluid temperature
Tm 90°C
-
Orifice
DN 7 mm
-
Fluid direction
Unidirectional
-
Hydraulic connections
-
Inlet
JG 8 mm
JG 10 mm
-
Outlet
JG 8 mm
JG 10 mm
-
MOQ
-
mod. F3143100
200 pcs
-
mod. F3144100
200 pcs
-
mod. F3145100
200 pcs
-
mod. F3146100
200 pcs

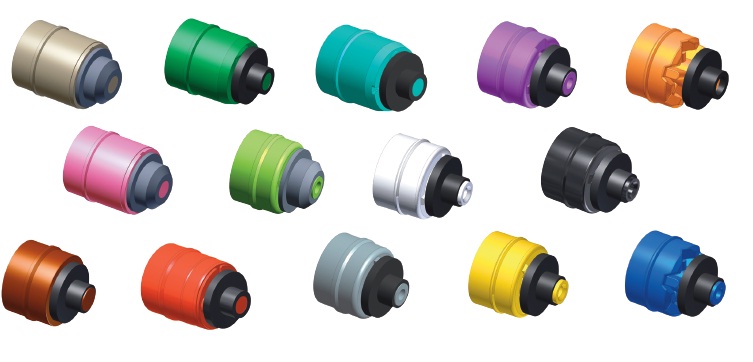

| Color |
Portata L/min |
Portata GAL/min |
Tolleranza |
Compensatore in LSR |
|
Beige
|
0,08 L/min
|
0,02 GAL/min
|
0,05 L/min
|
|
|
Marrón
|
0,10 L/min
|
0,03 GAL/min
|
0,05 L/min
|
|
|
Rosa
|
0,15 L/min
|
0,04 GAL/min
|
0,05 L/min
|
|
|
Rojo
|
0,25 L/min
|
0,07 GAL/min
|
0,05 L/min
|
|
|
Verde
|
0,40 L/min
|
0,11 GAL/min
|
0,05 L/min
|
|
|
Verde Lime
|
050 L/min
|
0,13 GAL/min
|
10%
|
|
|
Gris
|
0,60 L/min
|
0,16 GAL/min
|
10%
|
|
|
Cian
|
0,90 L/min
|
0,24 GAL/min
|
10%
|
|
|
Blanco
|
1,10 L/min
|
0,29 GAL/min
|
10%
|
|
|
Grigio scuro
|
1,40 L/min
|
0,37 GAL/min
|
10%
|
|
|
Amarillo
|
1,70 L/min
|
0,45 GAL/min
|
10%
|
|
|
Viola
|
2,15L/min
|
0,57 GAL/min
|
10%
|
|
|
Negro
|
2,70 L/min
|
0,71 GAL/min
|
10%
|
|
|
Azul
|
5,50 L/min
|
1,45 GAL/min
|
10%
|
|
|
Naranja
|
8,40 L/min
|
2,22 GAL/min
|
10%
|
|
Ficha Tecnica
| Modelo |
Entrada |
Salida |
Cantidad por caja |
Orificio |
Check Valve |
Adaptador |
|
F3143100
|
conexión rápida 8 mm
|
conexión rápida 8 mm
|
200
|
7 mm
|
|
|
|
F3144100
|
conexión rápida 8 mm
|
conexión rápida 10 mm
|
200
|
7 mm
|
|
|
|
F3145100
|
conexión rápida 10 mm
|
conexión rápida 8 mm
|
200
|
7 mm
|
|
|
|
F3146100
|
conexión rápida 10 mm
|
conexión rápida 10 mm
|
200
|
7 mm
|
|
|
