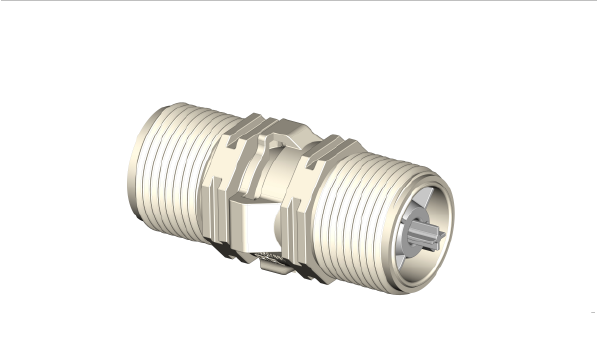

Cartridge with check valve
-
Working specifications
- Working pressure 0-10 bar
- Room temperature 0-60 bar
- Fluid temperature 0-65°C - max 1h at 90°C
- Flow direction Unidirectional
-
Physical specifications
- Fittings PA66 30%GF
- Fittings gasket LSR
- Chack-valve POM - PPO GF
- Check-valve gaskets NBR
- Check-valve spring Stainless steel
- Assembly Jointed
-
Applications
- Where can be needed a control of the fluid direction. Possibility to insert single or double check valve
-
Marks and certifications
- EN 13959:2005 - EN 61770:2019 Annex Z.2
-
Data sheets
| Model | Connections | Description |
| RU 31KIT AB 02 | M/M | Double check fitting |
| RU 31KIT AB 10 | M/M | Single check fitting |
| RU 31KIT AB 03 | M/M | Double check high temperature |
| RU 31KIT AB 14 | M/M | Single check high temperature |
| RU 31KIT AF 02 | M/F | Double check fitting |
| RU 31KIT AF 03 | M/F | Double check high temperature |
| RU 31KIT AF 04 | M/F | Single check high temperature |
| RU 31KIT EB 02 | F/M | Double check fitting |
| RU 31KIT EB 10 | F/M | Single check fitting |
| RU 31KIT EB 03 | F/M | Double check high temperature |
| RU 31KIT EB 04 | F/M | Single check high temperature |
| RU 31KIT EF 02 | F/F | Double check fitting |
| RU 31KIT EF 03 | F/F | Double check high temperature |
| RU 31KIT EF 04 | F/F | Single check high temperature |
