R Series 3/2 way - R2
-
Installation
- The valve can be installed in any positions without compromise for the operation
-
Applications
- Drink dispenser
- Coffee machine
- Water dispenser
- Household appliance
- Water and sanitary installation
- Where it need a water control
-
Physical specifications
- Valve body POM
- Diaphragm Liquid silicone rubber LSR
- Core Stainless steel
- Spring Stainless steel
- Assembly Bayonet
-
Working specifications
- Working pressure 0 - 0,5 bar
- Counterpressure 0 - 0,1 bar
- Room temperature 0 - 60° C
- Fluid temperature 60° C
- Duty cycle 3 min ON - 5 min OFF
- Flow direction Bidirectional
- Nominal diameter DN 4 mm
- Control 3 way
-

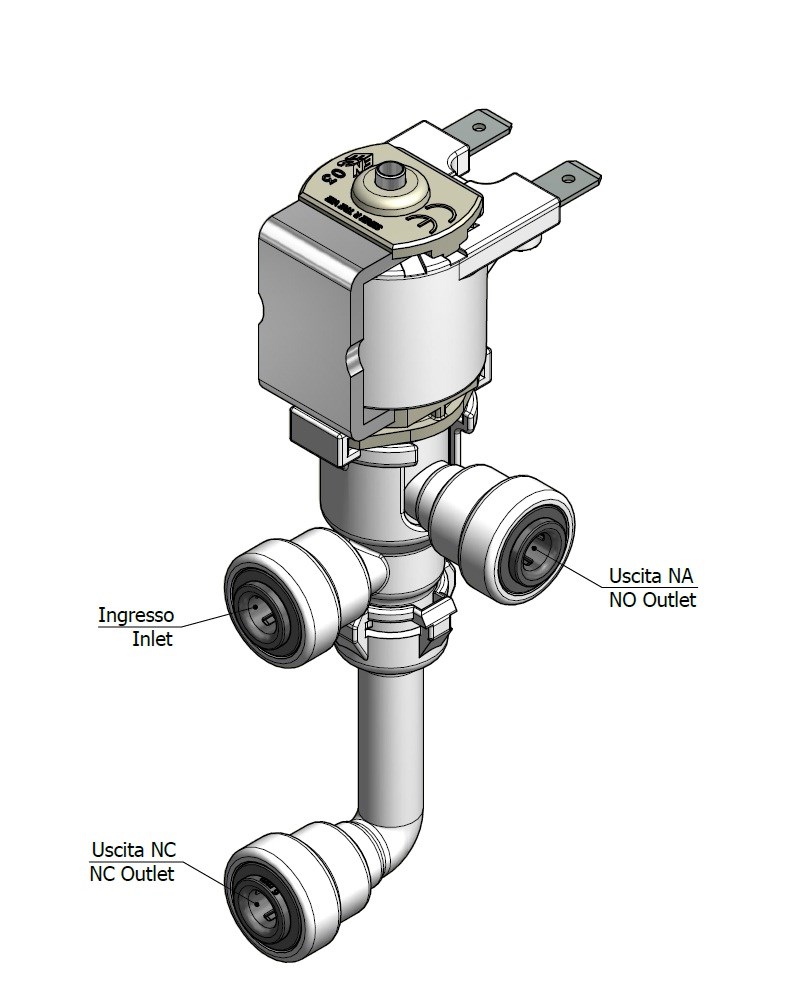

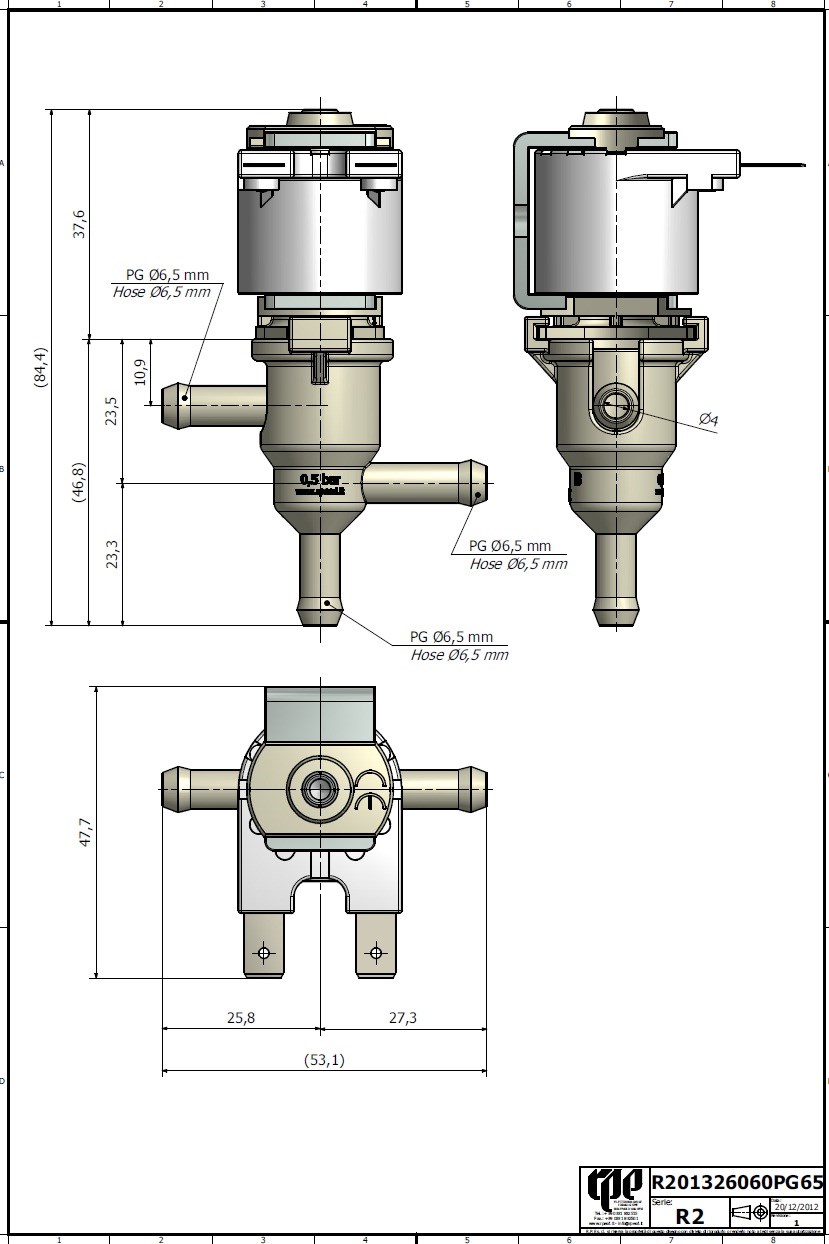

Hydraulic connections
- Inlet Hose 6,5 mm
- Outlet NC Hose 6,5 mm
- Outlet NO Hose 6,5 mm
-
Electrical Connections
- Male Faston 6,3 x 0,8 mm
Datasheets Low Temperature
| Model | IN | OUT | OUT NA/NO | Body valve | Orifice | Working pressure | Back pressure |
| R2-JG6 | Quick connection 6 mm | Quick connection 6 mm | Quick connection 6 mm | POM | 6 mm | 0 - 0,5 bar | 0 - 0,1 bar |
| R2-PG65 | Hose Tail 6,5 mm | Hose Tail 6,5 mm | Hose Tail 6,5 mm | PPH | 4 mm | 0 - 0,5 bar | 0 - 0,1 bar |
| R2-PG65 | Hose Tail 6,5 mm | Hose Tail 6,5 mm | Hose Tail 6,5 mm | PPH | 3.5 mm | 0 - 0,8 bar | 0 - 0,8 bar |
| R2-PG10 | Hose Tail 10 mm | Hose Tail 10 mm | Hose Tail 10 mm | POM | 6 mm | 0 - 0,5 bar | 0 - 0,1 bar |
Technical datasheets - High Temperature / Steam
| Model | IN | OUT | OUT NA/NO | Body valve | Orifice | Working pressure | Back pressure |
| R2 - PGRM4 | Hose Tail 5 mm | Fork | Quick connection 4 mm | PPSU | 2.5 mm | 0 - 4 bar | |
| R2 - PGRM6 | Hose Tail 5 mm | Fork | Quick connection 6mm | PPSU | 2.5 mm | 0 - 4 bar | |
| R2 - RM4 | Quick connection 4 mm | Fork | Quick connection 6mm | PPSU | 2.5 mm | 0 - 4 bar | 0 - 4 bar |
| R2 - RM46 | Quick connection 6 mm | Fork | Quick connection 6 mm | PPSU | 2.5 mm | 0 - 4 bar | 0 - 4 bar |
