RD Vent Solenoid

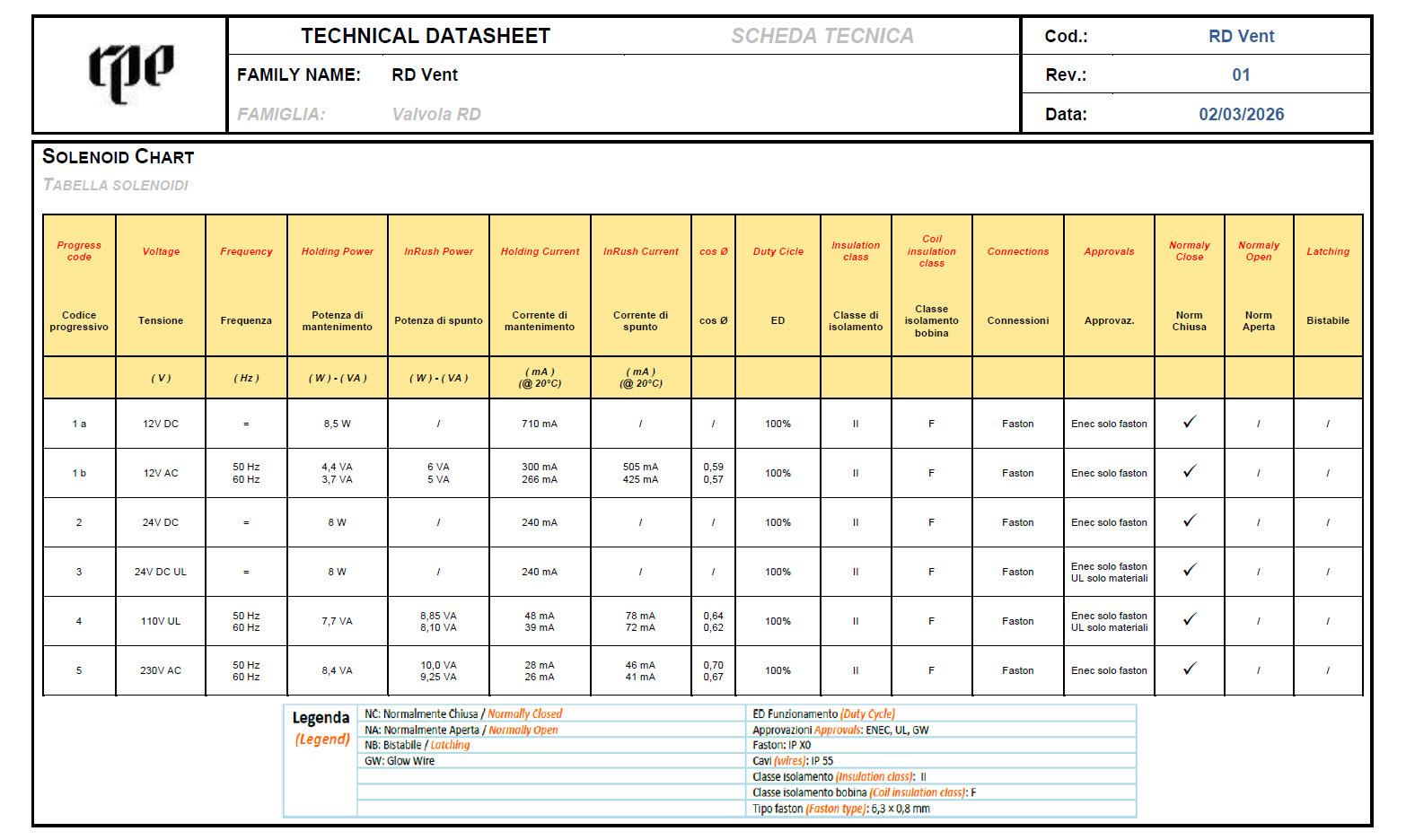

Solenoids
| Progress code | Voltage | Frequency | Holding power | In rush power | Holding current | In rush current | COS Ø | Duty cycle | Insulation class | Coil insulation class | Connections Faston, Unipolar wires | Approval | Nomally closed | Normally open | Latching |
| 1a | 12V DC | = | 8.5 W | / | 710 mA | / | / | 100% | II | F | Faston | Enec only faston | |||
| 1b | 12V AC |
50 Hz
60 Hz |
4.4 VA
3.7 VA |
6 VA
5 VA |
300 mA
266 mA |
505 mA
425 mA |
0.59
0.57 |
100% | II | F | Faston | Enec only faston | |||
| 2 | 24V DC | = | 8 W | / | 240 mA | / | / | 100% | II | F | Faston | Enec only faston | |||
| 3 | 24V DC UL | = | 8 W | / | 240 mA | / | / | 100% | II | F | Faston |
Enec only faston
UL only materials |
|||
| 4 | 110V UL |
50 Hz
60 Hz |
7.7 VA |
8.85 VA
8.10 VA |
48 mA
39 mA |
78 mA
72 mA |
0.64
0.62 |
100% | II | F | Faston |
Enec only faston
UL only materials |
|||
| 5 | 230V AC |
50 Hz
60 Hz |
8,4 VA |
10.0 VA
9.25 VA |
28 mA
26 mA |
46 mA
41 mA |
0.70
0.67 |
50% | II | F | Faston | Enec only faston |
