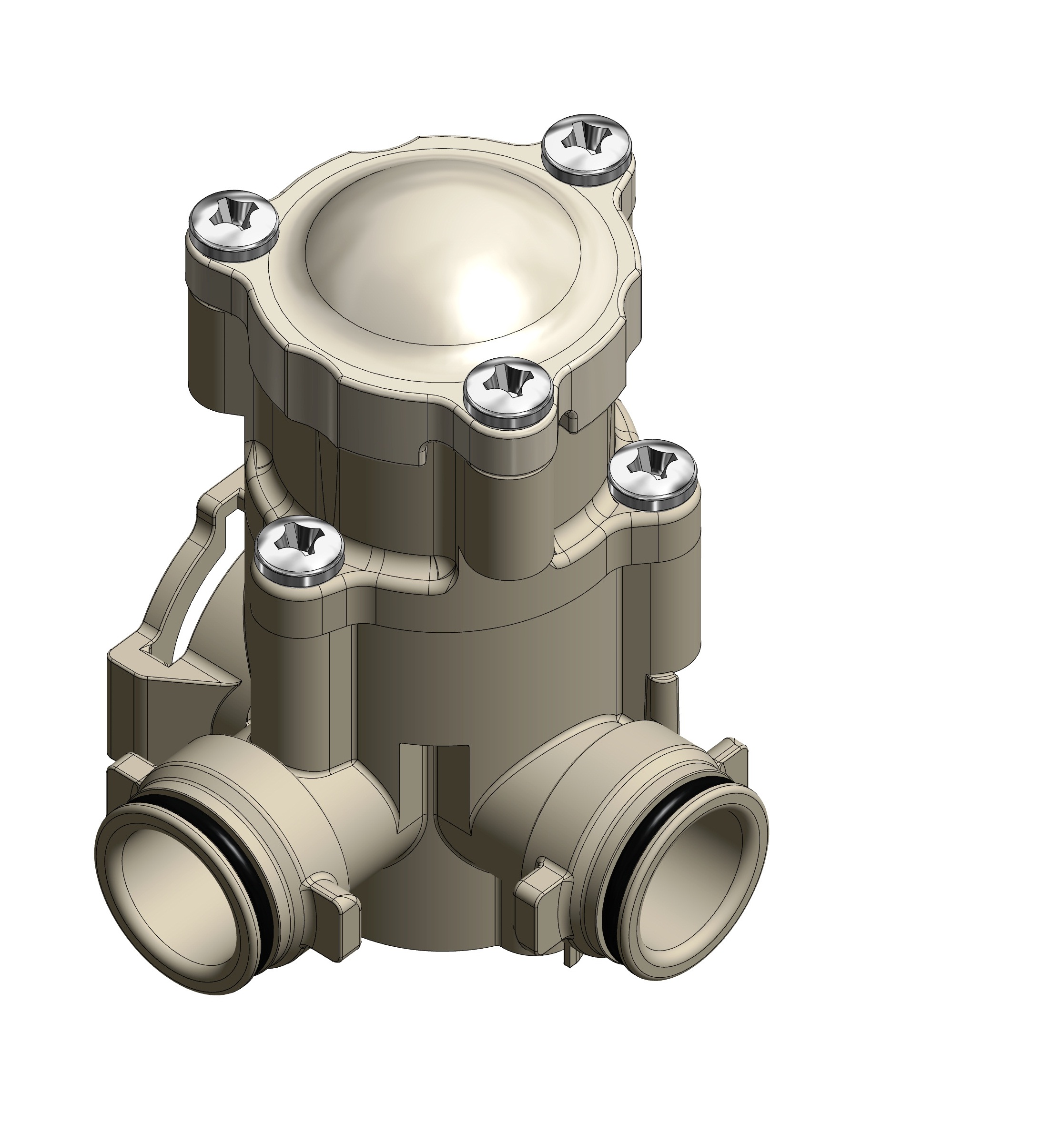

R Series Universal Pressure Restrictor
R Series Servo-controlled solenoids
R Series Direct Solenoids
-
Installation
- The pressure restrictor can be mounted in any position without affecting operation.
-
Applications
- Any application that needs a costant work pressure.
-
Physical specifications
- Pressure restrictor PA 66 - 30% glass fiber
- Body valve PA 66 - 30% glass fiber
- O-Ring LSR
- Diaphragm EPDM + textile coupled
- Assembly With screws
-
Working specifications
- Max working pressure: max 10 bar
- Room temperature Tu 60 °C
- Fluid temperature Tm 25 °C
- Flow direction Unidirectional
Models
| Model | Installation | Specifications | Pressure chart |
| 0,5 bar |
R SINGLE
R MINI R COMPONIBLE R MODULAR |
Inlet pressure: Max 10 bar Outlet pressure restrictor: 0,5 bar Tolerance: 20 | Pressure chart |
| 1,2 bar |
R SINGLE
R MINI R COMPONIBLE R MODULAR |
Inlet pressure: Max 10 bar
Outlet pressure restrictor: 1,2 bar |
Pressure chart |
| 1,5 bar |
R SINGLE
R MINI R COMPONIBLE R MODULAR |
Inlet pressure: Max 10 bar
Outlet pressure restrictor: 1,5 bar |
Pressure chart |
| 2,0 bar |
R SINGLE
R MINI R COMPONIBLE R MODULAR |
Inlet pressure: Max 10 bar
Outlet pressure restrictor: 2 bar |
Pressure chart |
| 3,0 bar |
R SINGLE
R MINI R COMPONIBLE R MODULAR |
Inlet pressure: Max 10 bar
Outlet pressure restrictor: 3 bar |
Pressure chart |
| 4,0 bar |
R SINGLE
R MINI R COMPONIBLE R MODULAR |
Inlet pressure: Max 10 bar
Outlet pressure restrictor: 4 bar |
Pressure chart |
